Switch OLED

Problem Description	Symptoms	Solution	Source

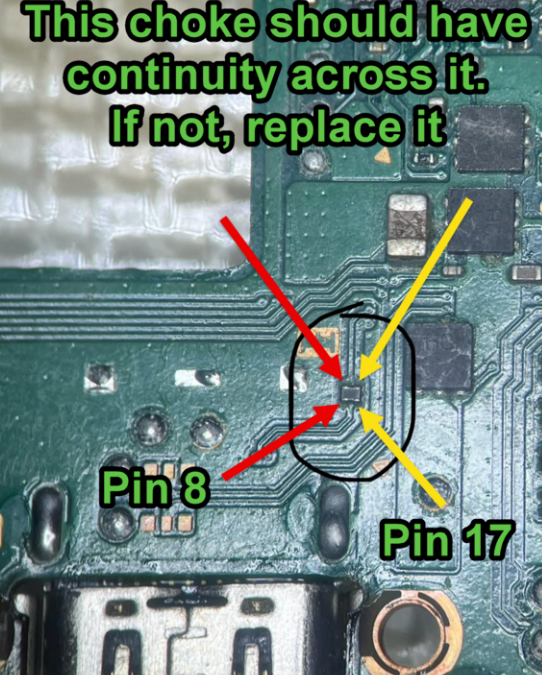

No display when docked.		- If you have a mechanic port tester and pin 8 & 17 report 0L, test this choke: - Can also be caused by a bad P13. On this model you can test the capacitor next to it to test.	Source Source
Orange Screen of Death (OSoD)		Replace Bluetooth/WiFi card.

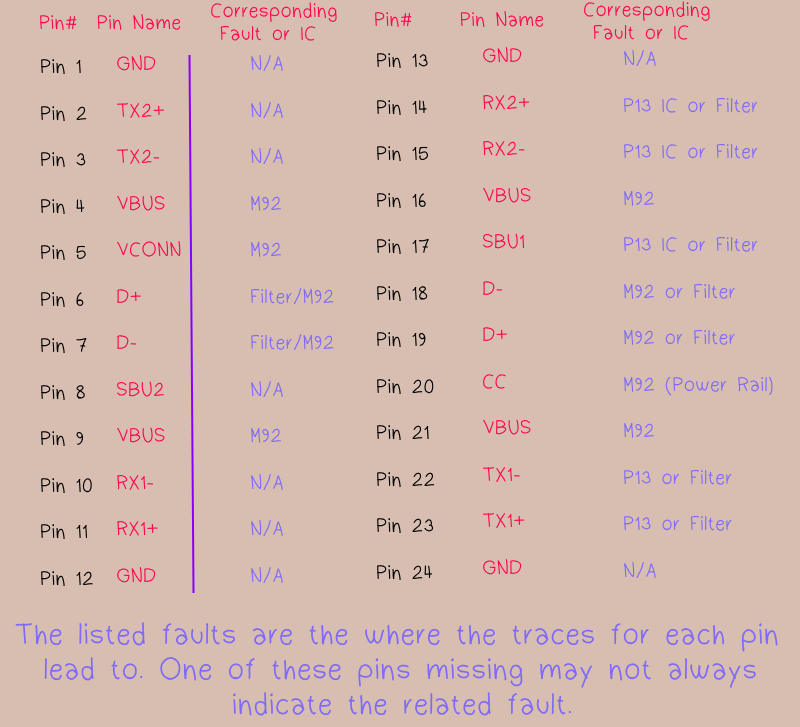

Diode Reading Pin/Fault Diagram

You can read these values with a Tail Insertion Tester or a 24 pin USB-C breakout board. If the diode reading is low or missing you can use this chart to pinpoint the fault.
