Xbox One S
| Problem Description | Symptoms | Solution | Source |
|---|---|---|---|
| No power. | - Light stays on for 10 seconds. - Fan spins. | - Test the HDD using CrystalDiskInfo or similar software to ensure it’s a good drive. - This can also be caused by a dead disc drive. | Source |
| No power. | PSU makes a chirping noise. | Defective PSU, replace. | Source |
| No power. | - Try a known working PSU. - This can be caused by a short on the disc drive daughterboard. - A bad HDMI retimer IC can short the 5V rail and cause no power. - Check mosfet drivers (NCP5901) for corrosion and/or damage on power phases. - Check 2ohm resistors on power phases. - Check mosfets on power phases (TPN8R903NL) | Source | |
| No display. | - Test the HDD using CrystalDiskInfo or similar software to ensure it’s a good drive. - If the drive is good then this is likely caused by something dying in the HDMI circuit. Start with replacing the port. - If the above doesn’t help, test for shorts near the HDMI retimer IC and the ESD Protection IC. - Test the HDMI filters. | Source | |
| Error E100 00000703 80910008 | There is a short present on the disc drive daughterboard. | Source | |
| ”Something went wrong” Error | - Test the HDD using CrystalDiskInfo or similar software to ensure it’s a good drive. - This can also be caused by a corrupt OS, attempt to reinstall via USB. | Source | |
| Beep on beep off. | This can be caused by basically ANYTHING. - Check for corrosion on the board. - Inspect all ports for damage. (Ethernet, HDMI, USB, etc.) - Check 1.1v, 1.8v, 3.3v, 5v rails for standby voltages (with PSU plugged in) - Check for shorts around the Southbridge IC. | Source |

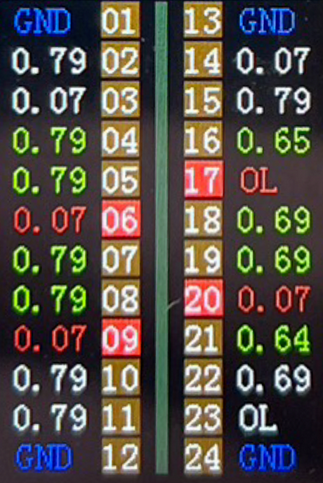

Good Tail Insertion Tester Reading
